Collect Data with Sensors for Windows Desktop Devices

Windows Desktop devices contain multiple attributes such as hardware, OS, certificates, patches, apps, and more. With Sensors, you can collect data for these attributes using the Workspace ONE UEM console. Display the data in Workspace ONE Intelligence and in Workspace ONE UEM.

Freestyle Feature

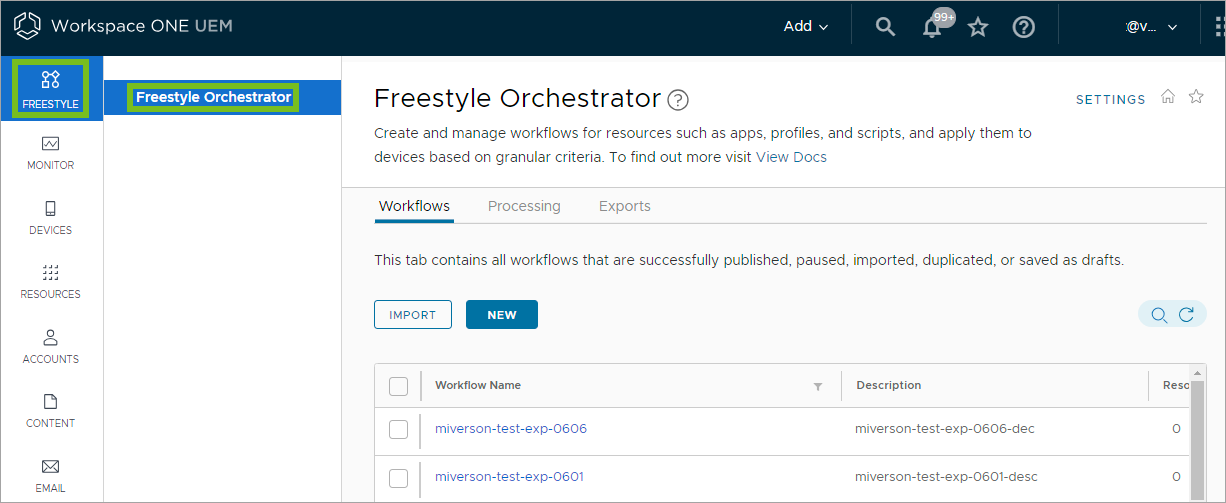

Sensors is a Freestyle feature that is available for SaaS environments. Shows the Freestyle Orchestrator in the UEM console.

Sensors Description

Devices have a huge number of attributes associated with them. This number increases when you track the different apps, OS versions, patches, and other continually changing variables. It can be difficult to track all these attributes.

Workspace ONE UEM tracks a limited number of device attributes by default. However with Sensors, you can track the specific device attributes you want. For example, you can create a sensor that tracks the driver details for a mouse driver, the warranty information for the OS, and the registry value for your internal apps. Sensors allow you to track various attributes across your devices. Find Sensors in the main Workspace ONE UEM console navigation under Resources.

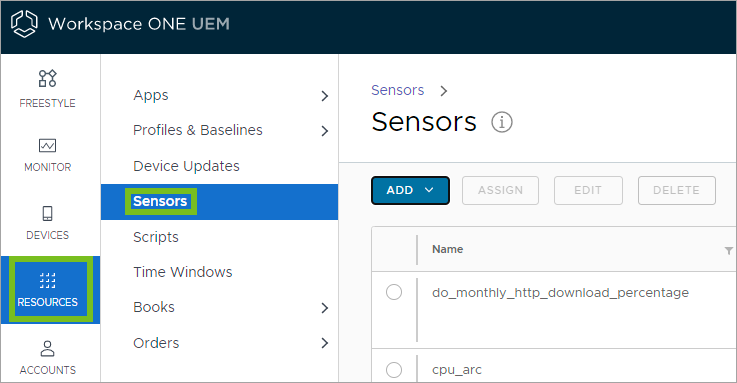

Shows the navigation path to Sensors

To work with Sensors data from Workspace ONE UEM, you can use Workspace ONE Intelligence. Workspace ONE Intelligence has dashboards and reports where you can view and analyze your Sensors data. Data transfer between the two system occurs over secure HTTP using SSL on port 443.

Important: Sensors are not permitted to be assigned to Employee-Owned devices for privacy reasons.

Workspace ONE UEM Options

Sensors Triggers

When configuring Sensors, you can control when the device reports the sensor data back to the Workspace ONE UEM console with triggers. You can schedule these triggers based on the Windows Sample Schedule or specific device events such as login and logout.

Added PowerShell Scripts

The PowerShell script you create determines the value of each sensor.

Device Details > Sensors

You can see data for single devices on the Sensors tab in a device's Device Details page.

The configuration Device State must be enabled in your data center so that Workspace ONE UEM can display Sensors data for devices on the Sensors tab. Workspace ONE UEM enables this configuration for SaaS customers.

Note: Workspace ONE UEM is working on a solution for on-premises environments, but until this solution is created, the Sensors tab is not available in Device Details for on-premises deployments.

Workspace ONE Intelligence Options

Reports and Dashboards To Analyze Data

If you use the Workspace ONE Intelligence service, you can run a report or create a dashboard to view and interact with the data from your Sensors. When you run reports, use the Workspace ONE UEM category, Device Sensors. You can find your sensors and select them for queries in reports and dashboards.

RBAC to Control Access To Data

To control who has access to Sensors, use the Roles Based Access Control (RBAC) feature in Workspace ONE Intelligence. RBAC assigns permissions to admins, so use them to prevent or allow specific Workspace ONE Intelligence users from accessing Sensors data.

Encryption

All data at rest is encrypted in Workspace ONE Intelligence.

Use Write-Ouput and Not Write-Host in Scripts

The Write-Host string in a script directly writes to the screen, and it does not report the sensor output to Workspace ONE Intelligence. However, the string Write-Output does write to the pipeline, so use it instead of Write-Host. Update applicable scripts to Write-Output or echo (echo is an alias for Write-Output.)

For details, access topics in Microsoft | Docs for Write-Host and for Write-Output.

Example of a Non-Working Script

Returns Time Zone
Return Type: String

$os=Get-TimeZone
write-host $os

Write-Host is not the output of the script, so there is no output from the script.
Write-Host directly writes to the 'screen' and not to the pipeline.

Example of a Working Script

Returns Time Zone
Return Type: String

$os=Get-TimeZone
write-output $os

Workspace ONE Intelligence Documentation

For details on how to work in Workspace ONE Intelligence, access Workspace ONE Intelligence Products.

Windows Desktop Devices and Sensors Data

Sensors data is not stored locally on Windows devices. A sensor runs PowerShell code that evaluates an attribute on a system and reports that data to Workspace ONE Intelligence. After it evaluates and reports, the PowerShell process terminates.

PowerShell Script Examples for Sensors

When you create Sensors for Windows devices, you must upload a PowerShell script or enter the PowerShell commands in the text box provided during configuration in the Workspace ONE UEM console. These commands return the values for the sensor attributes.

The following examples contain the settings and code needed.

Note: Any sensor that returns a date-time data type value uses the ISO format.

Check Remaining Battery

Value Type: integer

Execution Context: User

$battery_remain=(Get-WmiObject win32_battery).estimatedChargeRemaining |
Measure-Object -Average | Select-Object -ExpandProperty Averageecho $battery_remain

Get Serial Number

Value Type: String

Execution Context: User

$os=Get-WmiObject Win32_bios -ComputerName $env:computername -ea silentlycontinue
echo $os.SerialNumber

Get System Date

Value Type: DateTime

Execution Context: User

$date_current = get-Date -format s -DisplayHint Date
echo $date_current

Check If TPM Is Enabled

Value Type: Boolean
Execution Context: Administrator
```
$obj = get-tpm
echo $obj.TpmReady
```

Check If TPM Is Locked

Value Type: Boolean
Execution Context: Administrator
```
$obj = get-tpm
echo $obj.LockedOut
```

Get TPM Locked Out Heal Time

Value Type: String
Execution Context: Administrator
```
$tpm=get-tpm
echo $tpm.LockoutHealTime
```

Check If SMBIOS Is Present

Value Type: Boolean

Execution Context: User

$os = Get-WmiObject Win32_bios -ComputerName $env:computername -ea silentlycontinue
echo $os.SMBIOSPresent

Check SMBIOS BIOSVersion

Value Type: Boolean

Execution Context: User

$os = Get-WmiObject Win32_bios -ComputerName $env:computername -ea silentlycontinue
echo $os.SMBIOSBIOSVersion

Get BIOS Version

Value Type: String

Execution Context: User

$os = Get-WmiObject Win32_bios -ComputerName $env:computername -ea silentlycontinue
echo $os.Version

Get BIOS Status

Value Type: String

Execution Context: User

$os = Get-WmiObject Win32_bios -ComputerName $env:computername -ea silentlycontinue
echo $os.Status

Get Average CPU Usage (%)

Value Type: Integer

Execution Context: User

$cpu_usage= Get-WmiObject win32_processor | Select-Object -ExpandProperty LoadPercentage
echo $cpu_usage

Get Average Memory Usage

Value Type: Integer

Execution Context: User

$os = Get-WmiObject win32_OperatingSystem
$used_memory = $os.totalvisiblememorysize - $os.freephysicalmemory
echo $used_memory

Get Average Virtual Memory Usage

Value Type: Integer

Execution Context: User

$os = Get-WmiObject win32_OperatingSystem
$used_memory = $os.totalvirtualmemorysize - $os.freevirtualmemory
echo $used_memory

Get Average Network Usage

Value Type: Integer

Execution Context: User

$Total_bytes=Get-WmiObject -class Win32_PerfFormattedData_Tcpip_NetworkInterface
|Measure-Object -property BytesTotalPersec -Average |Select-Object -ExpandProperty Average
echo ([System.Math]::Round($Total_bytes))

Get Average Memory Usage For A Process

Value Type: String

Execution Context: User

$PM = get-process chrome |Measure-object -property PM -Average|Select-Object -ExpandProperty Average
$NPM = get-process chrome |Measure-object -property NPM -Average|Select-Object -ExpandProperty Average
echo [System.Math]::Round(($PM+$NPM)/1KB)

Check If A Process Is Running Or Not

Value Type: Boolean

Execution Context: User

 $chrome = Get-Process chrome -ea SilentlyContinue
			if($chrome){
				echo $true
				}
			else{
				echo $false
				}

Check If Secure Boot Is Enabled

Value Type: Boolean

Execution Context: Administrator

try { $bios=Confirm-SecureBootUEFI }
catch { $false }
echo $bios

Active Network Interface

Value Type: String

Execution Context: User

$properties = @(‘Name’,’InterfaceDescription’)
$physical_adapter = get-netadapter -physical | where status -eq "up"
|select-object -Property $properties
echo $physical_adapter

Check The PowerShell Version

Value Type: String

Execution Context: User

$x = $PSVersionTable.PSVersion
echo "$($x.Major).$($x.Minor).$($x.Build).$($x.Revision)"

Check Battery Max Capacity

Value Type: Integer

Execution Context: User

$max_capacity = (Get-WmiObject -Class "BatteryFullChargedCapacity" -Namespace "ROOT\WMI").FullChargedCapacity | Measure-Object -Sum |
Select-Object -ExpandProperty Sum
echo $max_capacity

Check Battery Charging Status

Value Type: String

Execution Context: User

$charge_status = (Get-CimInstance win32_battery).batterystatus
$charging = @(2,6,7,8,9)
if($charging -contains $charge_status[0] -or $charging -contains $charge_status[1] )
{
                echo "Charging"
                }else{
                echo "Not Charging"
}

Active Power Management Profile

Value Type: String

Execution Context: Administrator

$plan = Get-WmiObject -Class win32_powerplan -Namespace root\cimv2\power
-Filter "isActive='true'"
echo $plan

Check If Wireless Is Present

Value Type: Boolean

Execution Context: User

$wireless = Get-WmiObject -class Win32_NetworkAdapter -filter "netconnectionid like 'Wi-Fi%'"
	if($wireless){echo $true}
	else {echo $false}

Get Java Version

Value Type: String

Execution Context: User

$java_ver = cmd.exe /c "java -version" '2>&1'
echo $java_ver

Create a Sensor for Windows Desktop Devices

Create Sensors in the Workspace ONE UEM console to track specific device attributes such as remaining battery, OS version, or average CPU usage. Each sensor includes a script of code to collect the desired data. You can upload these scripts or enter them directly into the console.

Sensors use PowerShell scripts to gather attribute values. You must create these scripts yourself either before creating a sensor or during configuration in the scripting window.

Each script contains only one sensor. If a script returns multiple values, Workspace ONE Intelligence and Workspace ONE UEM read only the first value as the response from the script. If a script returns a null value, Workspace ONE Intelligence and Workspace ONE UEM do not report the sensor.

Prerequisites

If you want to view Sensors for multiple devices and interact with the data in reports and dashboards, you must opt into Workspace ONE Intelligence. If you want to view Sensors data for a single device, you do not need Workspace ONE Intelligence. Go to the device's Device Details page and select the Sensors tab to view the data.

Procedure

Navigate to Resources > Sensors > Add.
Select Windows.
Configure the sensor settings for the General tab.
- Name - Enter a name for the sensor. The name must start with a lowercase letter followed by alpha-numeric characters and underscores. The name must be between 2-64 characters. Do not use spaces in this menu item.
- Description - Enter a description for the sensor.
Select Next.
Configure the sensor settings for the Details tab.
- Language - Workspace ONE UEM supports PowerShell.
- Execution Context - This setting controls whether the script for the sensor runs on a user or system context.
- Execution Architecture - This setting controls whether the script for the sensor runs on a device based on the architecture. You can limit the script to run on 32-bit devices or 64-bit devices only or to run the script based on the device architecture. You can also force the script to run as 32-bit regardless of the device.
- Response Data Type - Select the type of response to the script for the sensor. You can choose between:
  - String
  - Integer
  - Boolean
  - Date Time
- Script Command - Upload a script for the sensor or write your own in the text box provided.
Select Save to assign your Sensors later or select Save & Assign to assign Sensors to devices with groups.
To continue with assignment, select Add Assignment.
On the Definition tab, enter the Assignment Name and use the Select Smart Group menu item to select the group of devices you want to collect Sensors data from.
On the Deployment tab, select the trigger for the sensor to report the device attribute. You can select multiple values.

What to do next

After creating a sensor, use the Device Details page in Workspace ONE UEM to see data for single devices or go to Workspace ONE Intelligence to use reports and dashboards to interact with data for multiple devices.
