PowerShell deployment to Amazon AWS EC2

This section describes the use of PowerShell command to deploy Unified Access Gateway 2111 or later to Amazon Web Services Elastic Compute Cloud (EC2) and the steps to prepare the EC2 environment before creating any Unified Access Gateway instances.

Recommended Operating Systems and PowerShell Versions

Prerequisites

• AWS account with adequate privileges to deploy EC2 instance. For detailed information, see Amazon AWS Documentation.

• Ensure to allow the following policies in the IAM roles for successful deployment.

  s3:PutObject
  s3:PutObjectAcl
  s3:GetBucketLocation
  ec2:DescribeNetworkInterfaces
  ec2:ModifyNetworkInterfaceAttribute
  ec2:CreateNetworkInterface
  ec2:DescribeInstances
  ec2:RunInstances
  ec2:TerminateInstances
  ec2:DescribeSubnets
  ec2:DescribeSecurityGroups
  ec2:DescribeAddresses
  ec2:AssociateAddress
  ec2:DescribeRegions
  ec2:DescribeImages
  ec2:CreateTags


Procedure

Step 1. Prepare the Client Machine for Powershell

Install AWSPowerShell on your machine. See Installing the AWS Tools for PowerShell on Windows.

1. Open the Powershell command window with administrative rights.
2. Run these commands.


   Windows	Ubuntu
   Install-Module -Name AWSPowerShell -Force Install-Package 7Zip4PowerShell	Install-Module -Name AWS.Tools.Common Install-AWSToolsModule AWS.Tools.EC2,AWS.Tools.S3 -CleanUp

Step 2. Setup AWS profile and region on the client machine

1. On the AWS Console, create an Access Key and obtain the Access Key ID and Secret Access Key. Set them in the default profile.
   For more information, see Create access keys for the root user.



   (Optional) This step is applicable only if you do not have an access key ID and Secret Access Key.

   ```
   Set-AWSCredential -AccessKey AKIAI6428NKYOEXAMPLE `
   -SecretKey bvfhkvvfhsbvhsdbhfbvfhfhvfhdskvbhfvbfhEXAMPLE `
   -StoreAs default
   ```


   (Optional) Set your AWS region.
   Note: You can use the Get-AWSRegion command to identify the region you want to use.

   ```
   Set-DefaultAWSRegion -Region us-west
   ```




2. Create a bucket in Amazon S3 to store Unified Access Gateway .vmdk images if one does not already exist. For more information, see Creating a bucket.


   For example, consider creating bucket with name “uag-images”.

   ```
   $bucket="uag-images"
   New-S3Bucket -BucketName $bucket -Region us-east-2
   ```


3. Create an IAM role in Amazon AWS called vmimport and apply a policy to the role.


   ```
   $importPolicyDocument = @"
   {
   "Version":"2012-10-17",
   "Statement":[
   {
   "Sid":"",
   "Effect":"Allow",
   "Principal":{
   "Service":"vmie.amazonaws.com"
   },
   "Action":"sts:AssumeRole",
   "Condition":{
   "StringEquals":{
   "sts:ExternalId":"vmimport"
   }
   }
   }
   ]
   }
   "@

   New-IAMRole -RoleName vmimport -AssumeRolePolicyDocument $importPolicyDocument

   $bucket="uag-images"
   $rolePolicyDocument = @"
   {
   "Version": "2012-10-17",
   "Statement": [
   {
   "Effect": "Allow",
   "Action": [
   "s3:GetBucketLocation",
   "s3:GetObject",
   "s3:ListBucket"
   ],
   "Resource": [
   "arn:aws:s3:::$bucket",
   "arn:aws:s3:::$bucket/*"
   ]
   },
   {
   "Effect": "Allow",
   "Action": [
   "ec2:ModifySnapshotAttribute",
   "ec2:CopySnapshot",
   "ec2:RegisterImage",
   "ec2:Describe*"
   ],
   "Resource": "*"
   }
   ]
   }
   "@

   Write-IAMRolePolicy -RoleName vmimport -PolicyName vmimport -PolicyDocument $rolePolicyDocument

   ```




4. (Optional) Prepare the network environment in EC2.
   Note: These steps can be performed from the EC2 Management Console or with PowerShell. They just need to be done once to prepare the EC2 environment for Unified Access Gateway deployments. For this, at least one subnet is needed. For multi NIC Unified Access Gateway deployments, each NIC can either be on the same subnet or on different subnets.

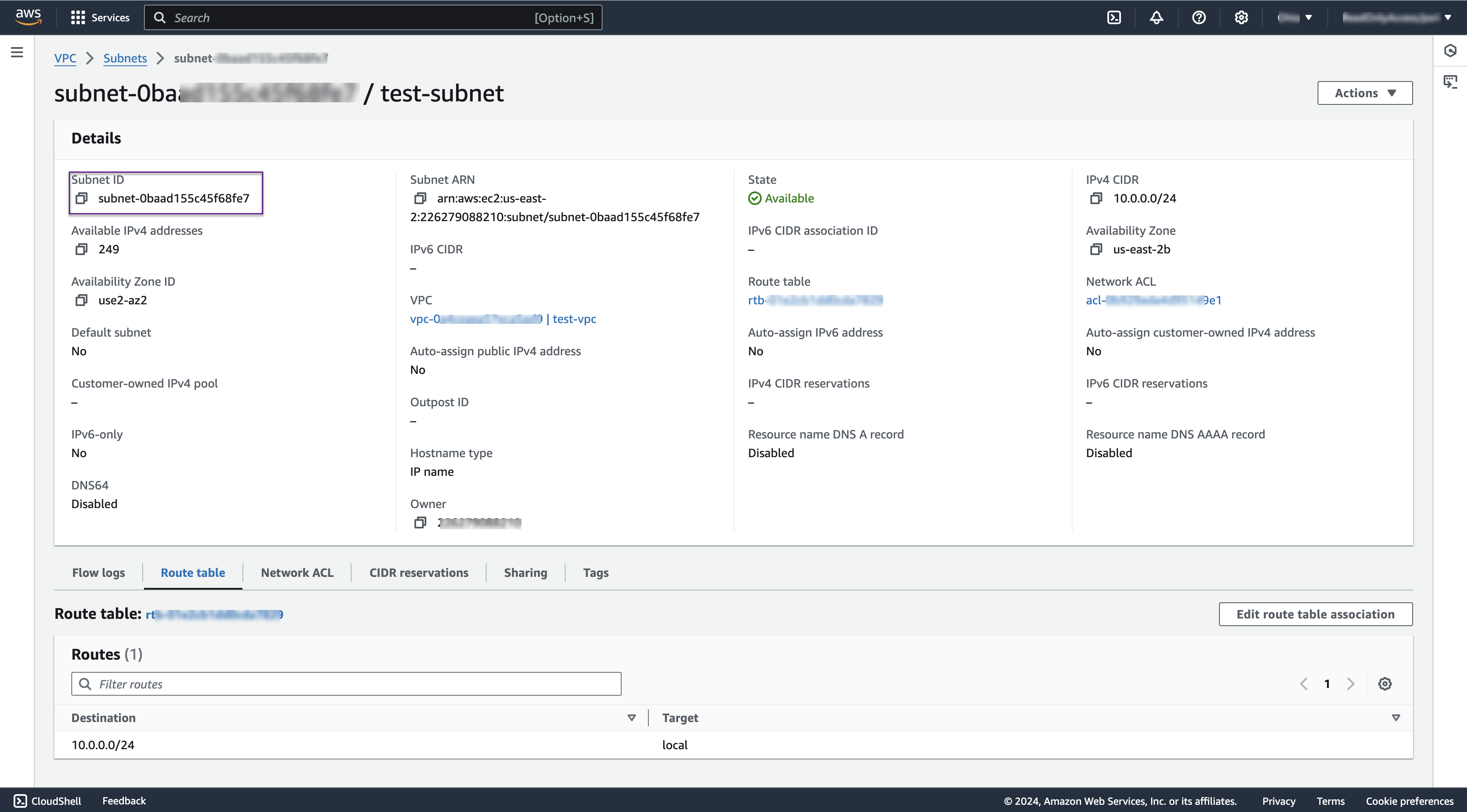

5. (Optional) Create a subnet. For more information, see Create Subnets.

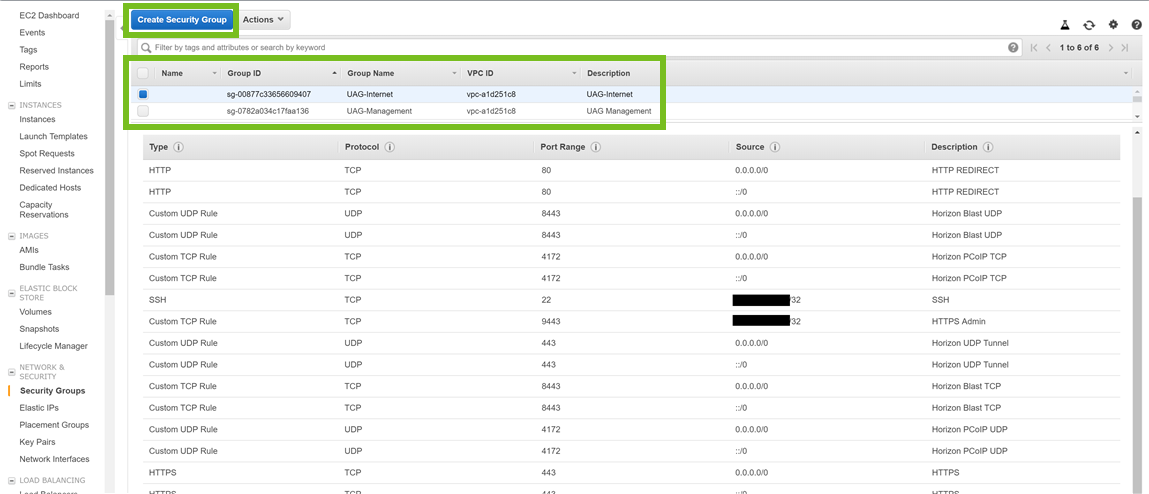

6. (Optional) Create a Security Group for each type of NIC. A security group contains a set of firewall rules to restrict TCP and UDP port access. A security group can be shared among multiple Unified Access Gateway appliances. For example, you can create a security group called UAG-Internet for eth0 and associate with the first NIC automatically when the Unified Access Gateway appliance is created.
   For Horizon use, the first (UAG-Internet) could allow TCP ports 80, 443, 8443, 4172 and UDP ports 443, 8443, 4172 from any client. If you want to allow ssh access to Unified Access Gateway then you must specify sshEnabled=true in the [General] section of each .ini file. SSH should generally only be enabled for testing purposes and not for a production deployment. You should also make sure that access to ssh on TCP port 22 is restricted in the security group to individual source IP addresses so that it is not open to all. For more information, see Creating a security group.

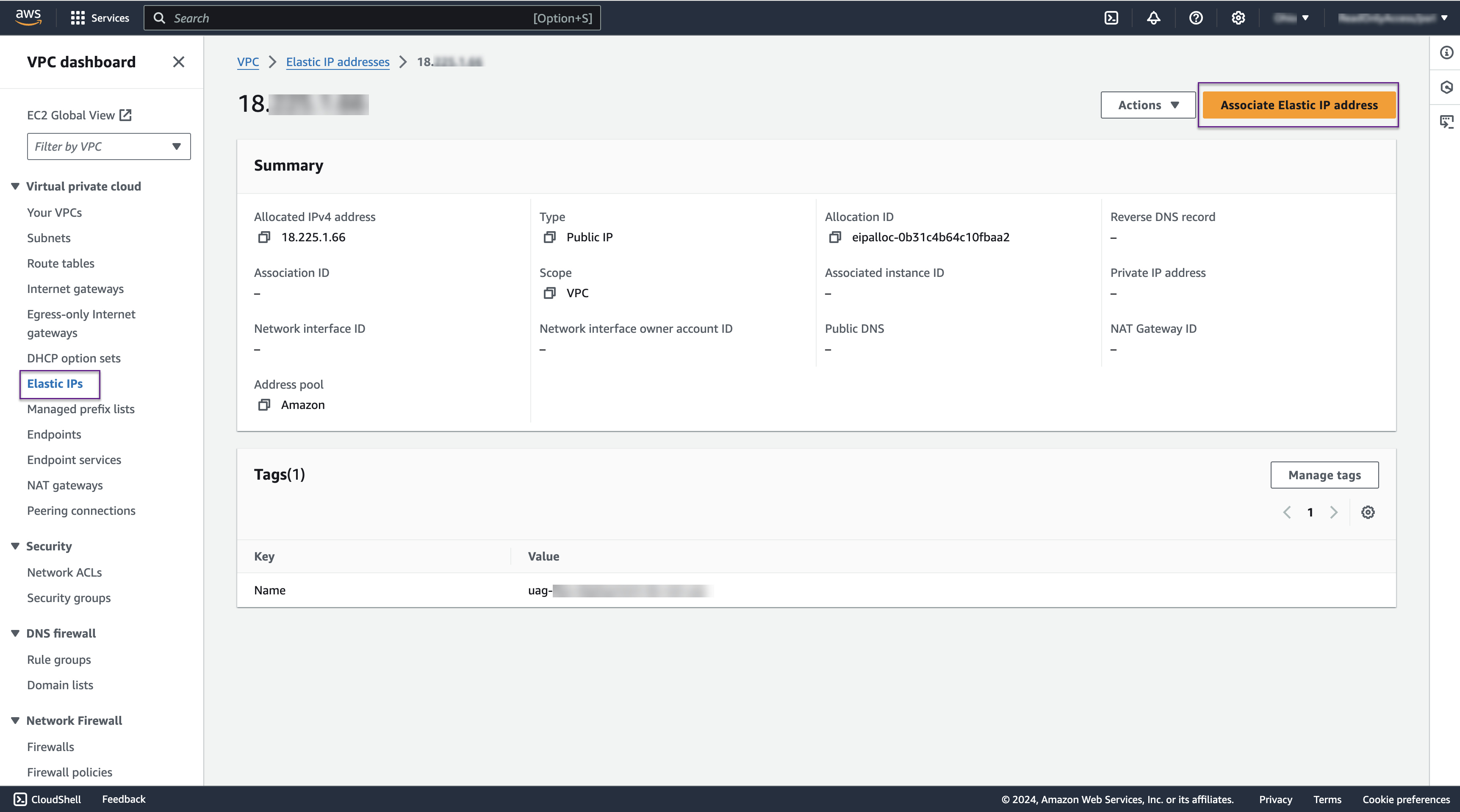

7. If the Unified Access Gateway appliance is directly accessible from the Internet, then each NIC requiring access must also have an associated public IP address known as Elastic IPs. For more information, see Allocate an Elastic IP address.






8. For each NIC, determine the Subnet ID, the Security Group ID and the Public IP Allocation ID.
   If you do not specify a Security Group ID for any NIC then the default Security Group will be used.
   If you do not specify a Public IP ID then there won't be a public IP address for that NIC and it won't be directly accessible from the Internet. This might be the case if a load balancer is used in front of a group of Unified Access Gateway appliances.



Step 3. Upload the Unified Access Gateway image with PowerShell

1. Download the Unified Access Gateway .ova image file from the Customer Connect portal. The version of this file must be 2111 or later.

2. Extract the .vmdk image from the .ova file.

   Windows	Ubuntu
   expand-7zip ova-filename target-location For example, euc-unified-access-gateway-x.y.0.0-12345678_OVF10.ova is the downloaded file, where x-y is the version number and 12345678 is the build number. To extract the .vmdk file to C:\temp, run the following command: expand-7zip C:\uag\euc-unified-access-gateway-x.y.0.0-12345678_OVF10.ova C:\uag\	tar -xvf ova-filename For example, tar -xvf euc-unified-access-gateway-x.y.0.0-12345678_OVF10.ova

3. Upload the .vmdk image into the S3 bucket.

   $vmdkImage="euc-unified-access-gateway-x.y.0.0-12345678-system.vmdk"
   $bucket="uag-images"
   $region="us-east-2"

   $params = @{
   "BucketName"=$bucket
   "File"="C:\uag\"+$vmdkImage
   "key"="/"+$vmdkImage
   "Region"=$region
   }
   Write-S3Object @params


4. Import the EC2 snapshot.

   $params = @{
   "DiskContainer_Format"="VMDK"
   "DiskContainer_S3Bucket"=$bucket
   "DiskContainer_S3Key"=$vmdkImage
   "Region"=$region
   }
   $impId=Import-EC2Snapshot @params


5. To track the import, periodically run the following command to obtain progress status.
   Note: The import will take several minutes.

   (Get-EC2ImportSnapshotTask -ImportTaskId `
   $impId.ImportTaskId).SnapshotTaskDetail


6. When complete, the following command must show the SnapshotId.

   (Get-EC2ImportSnapshotTask -ImportTaskId `
   $impId.ImportTaskId).SnapshotTaskDetail.SnapshotId


7. Register the Image as an Amazon Machine Image (AMI).

   $bdm=New-Object Amazon.EC2.Model.BlockDeviceMapping
   $bd=New-Object Amazon.EC2.Model.EbsBlockDevice
   $bd.SnapshotId=(Get-EC2ImportSnapshotTask `
   -ImportTaskId $impId.ImportTaskId).SnapshotTaskDetail.SnapshotId
   $bd.DeleteOnTermination=$true
   $bdm.DeviceName="/dev/sda1"
   $bdm.Ebs=$bd
   $params = @{
   "BlockDeviceMapping"=$bdm
   "RootDeviceName"="/dev/sda1"
   "Name"=$vmdkImage
   "Architecture"="x86_64"
   "VirtualizationType"="hvm"
   "EnaSupport"=$true
   }
   Register-EC2Image @params

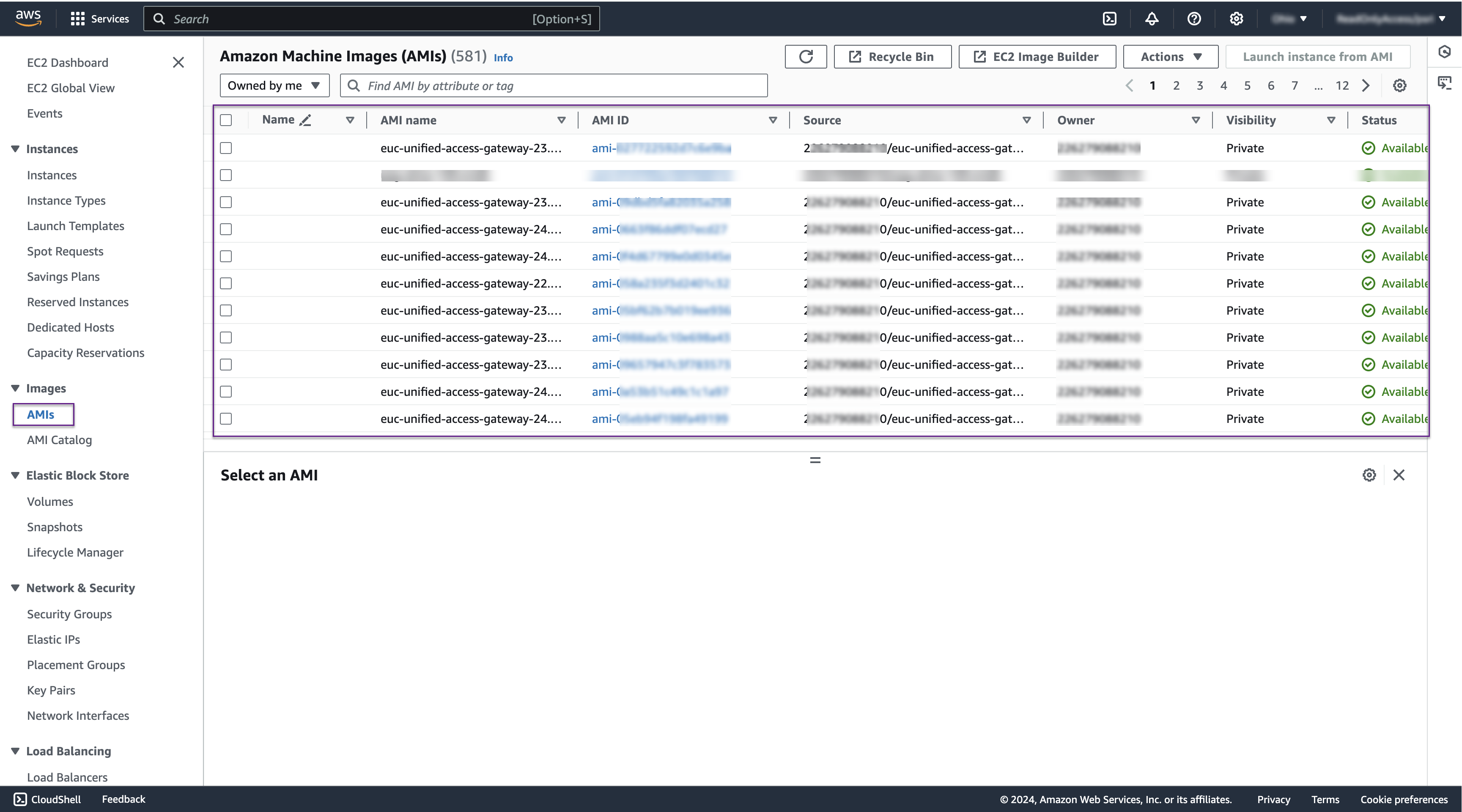

In AWS Console you should see your imported image in EC2 AMI Images.

Step 4. Prepare an INI File for AWS

For AWS EC2 deployments, the following settings in the General section are not used.

• diskMode
• ds
• folder
• netInternet
• netManagementNetwork
• netmask0,netmask1, netmask2
• netBackendNetwork
• source
• target
• All of the IPv4 and IPV6 settings

For AWS EC2, there is a new group called AmazonEC2 that contains all of the settings specific to AWS EC2.

Settings specific to AWS EC2

amiId=ami-1986bb7c

credentialProfileName=MyUAGProfile

instanceType=c4.large

ipv6AddressCount0=1

region=us-east-2

privateIPAddress1= 172.31.7.222

publicIPId0=eipalloc-027afa45f34984c87
ipv6AddressCount0=1

securityGroupId0=sg-00877c33656609407

subnetId1=subnet-5c980935

INI File Definition Example

[General]
name=UAG12
deploymentOption=twonic

[AmazonEC2]

# authentication

credentialProfileName=awsCredentialProfile

# type, region and image

instanceType=c4.large
region=us-east-2
amiId=ami-1986bb7c

# eth0 settings
subnetId0=subnet-5c980935
securityGroupId0=sg-00877c33656609407
publicIPId0=eipalloc-027afa45f34984c87

# eth1 settings
subnetId1=subnet-1f2743c2

Step 5: Deploy Unified Access Gateway to Amazon AWS EC2

1. From the Omnissa Customer Connect downloads page, go to Unified Access Gateway (UAG) PowerShell Scripts file and click DOWNLOAD NOW.
   A zip file uagdeploy-xx.xx.x.x-xxxxxxxx is downloaded on your local machine.

2. Ensure that the following PowerShell scripts are downloaded on your Windows machine.
   uagdeployec2.ps1 and uagdeploy.psm1

3. Open PowerShell window and run the command.
   uagdeployec2.ps1 <file_name>.ini

   Where, file_name is the name of your INI file.

3. Enter the admin password.

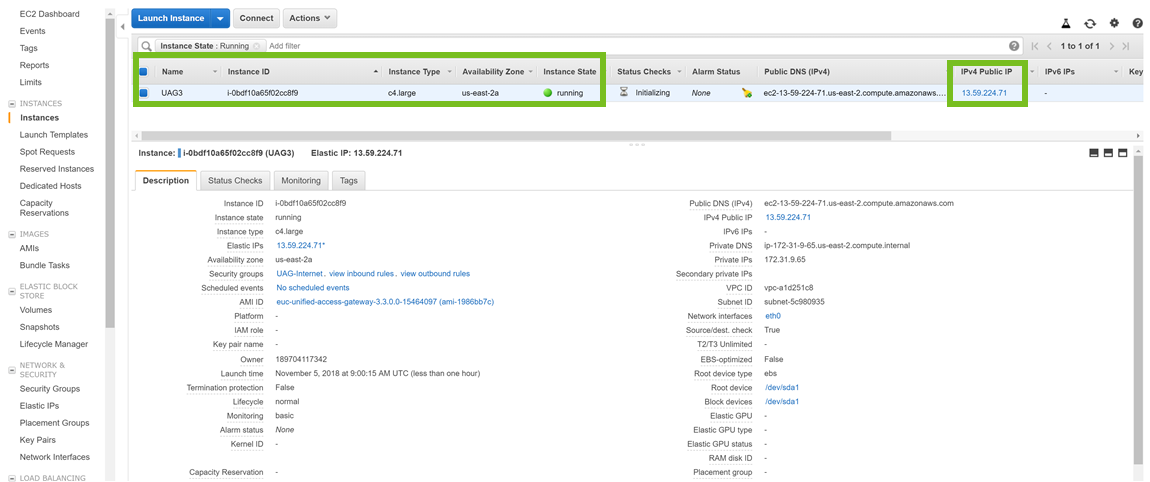

You can now access the UAG Admin UI using the Public IP.

4. To verify if the deployment is complete, log in to UAG using SSH and run the command:
   tail /opt/omnissa/gateway/logs/admin.log

5. Login to the admin UI using https://uag-ip or FQDN:9443/admin and configure the settings based on your requirement.

What to do next

1. Stop the Unified Access Gateway instance.
2. Clear the userData value from the current instance of Unified Access Gateway by using the following command: edit-EC2InstanceAttribute -InstanceId i-12345678 -Attribute userData -Value "blank".
