Upload the Unified Access Gateway Image to Microsoft Azure

You can upload the Unified Access Gateway .vhd image to Azure.

Procedure

1. Download a Unified Access Gateway .vhd image file of the specific Unified Access Gateway version from Customer Connect.

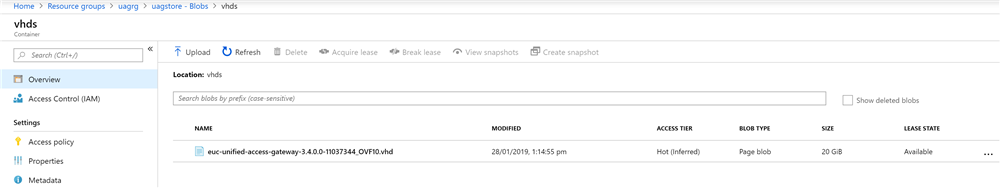

2. Use the following example PowerShell commands to upload the .vhd image to the vhds container created earlier.

   $imageURI = "https://<storage_account_name>.blob.core.windows.net/vhds/euc-unified-access-gateway-3.4.0.0-11037344_OVF10.vhd"


   $imagePath = "E:\UAGImages\euc-unified-access-gateway-3.4.0.0-11037344_OVF10.vhd"


   PowerShell 5:

   Set-Item -Path Env:\SuppressAzureRmModulesRetiringWarning -Value $true
   Add-AzureRmVhd -ResourceGroupName $resourceGroup -LocalFilePath $imagePath `
   -Destination $imageURI -NumberOfUploaderThreads 32


   PowerShell 7:

   Add-AzVhd -ResourceGroupName $resourceGroup -LocalFilePath $imagePath `
   -Destination $imageURI -NumberOfUploaderThreads 32
