Carregar a imagem do Unified Access Gateway no Microsoft Azure

Você pode carregar a imagem do Unified Access Gateway .vhd no Azure.

Procedimento

1. Obtenha um arquivo de imagem do Unified Access Gateway .vhd da versão do Unified Access Gateway específica da Omnissa.

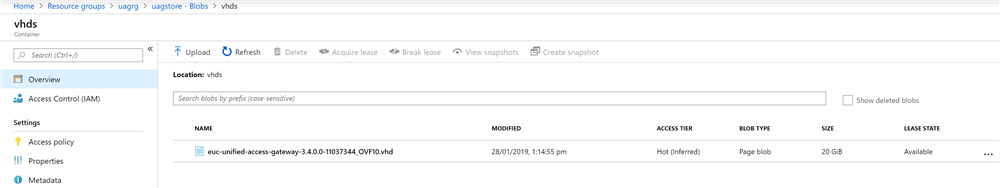

2. Use os comandos do PowerShell de exemplo a seguir para carregar a imagem .vhd para o contêiner vhds criado anteriormente.

   $imageURI = "https://<storage_account_name>.blob.core.windows.net/vhds/euc-unified-access-gateway-3.4.0.0-11037344_OVF10.vhd"


   $imagePath = "E:\UAGImages\euc-unified-access-gateway-3.4.0.0-11037344_OVF10.vhd"



   $location="<Azure regions names with availability zone support>"


   PowerShell 5:

   Set-Item -Path Env:\SuppressAzureRmModulesRetiringWarning -Value $true
   Add-AzureRmVhd -ResourceGroupName $resourceGroup -LocalFilePath $imagePath `
   -Destination $imageURI -NumberOfUploaderThreads 32


   PowerShell 7:

   Add-AzVhd -ResourceGroupName $resourceGroup -LocalFilePath $imagePath `
   -Destination $imageURI -NumberOfUploaderThreads 32




   Para Zona de Disponibilidade

   $location="uk south"

   $resourceGroup="uagrg"


   PowerShell 5:

   $imageConfig = New-AzureRmImageConfig -Location $location
   Set-AzureRmImageOsDisk -Image $imageConfig -OsType Linux -OsState Generalized -BlobUri $imageURI
   New-AzureRmImage -Image $imageConfig -ImageName $imageName -ResourceGroupName $resourceGroup


   PowerShell 7:

   $imageConfig = New-AzImageConfig -Location $location
   $imageConfig = Set-AzImageOsDisk -Image $imageConfig -OsType Linux -OsState Generalized -BlobUri $imageURI
   $image = New-AzImage -ImageName $imageName -ResourceGroupName $resourceGroup -Image $imageConfig
