Upload the Unified Access Gateway Image to Microsoft Azure

You can upload the Unified Access Gateway .vhd image to Azure.

Procedure

1. Obtain a Unified Access Gateway .vhd image file of the specific Unified Access Gateway version from Omnissa.

2. Use the following example PowerShell commands to upload the .vhd image to the vhds container created earlier.

   $imageURI = "https://<storage_account_name>.blob.core.windows.net/vhds/euc-unified-access-gateway-3.4.0.0-11037344_OVF10.vhd"


   $imagePath = "E:\UAGImages\euc-unified-access-gateway-3.4.0.0-11037344_OVF10.vhd"



   $location="<Azure regions names with availability zone support>"


   PowerShell 5:

   Set-Item -Path Env:\SuppressAzureRmModulesRetiringWarning -Value $true
   Add-AzureRmVhd -ResourceGroupName $resourceGroup -LocalFilePath $imagePath `
   -Destination $imageURI -NumberOfUploaderThreads 32


   PowerShell 7:

   Add-AzVhd -ResourceGroupName $resourceGroup -LocalFilePath $imagePath `
   -Destination $imageURI -NumberOfUploaderThreads 32


   For Availability Zone



   For Availability Zone

   $location="uk south"

   $resourceGroup="uagrg"

   $imageName= "euc-unified-access-gateway-25.03.0.0-15196678301_OVF10.vhd"


   PowerShell 5:

   $imageConfig = New-AzureRmImageConfig -Location $location
   Set-AzureRmImageOsDisk -Image $imageConfig -OsType Linux -OsState Generalized -BlobUri $imageURI
   New-AzureRmImage -Image $imageConfig -ImageName $imageName -ResourceGroupName $resourceGroup


   PowerShell 7:

   $imageConfig = New-AzImageConfig -Location $location
   $imageConfig = Set-AzImageOsDisk -Image $imageConfig -OsType Linux -OsState Generalized -BlobUri $imageURI
   $image = New-AzImage -ImageName $imageName -ResourceGroupName $resourceGroup -Image $imageConfig

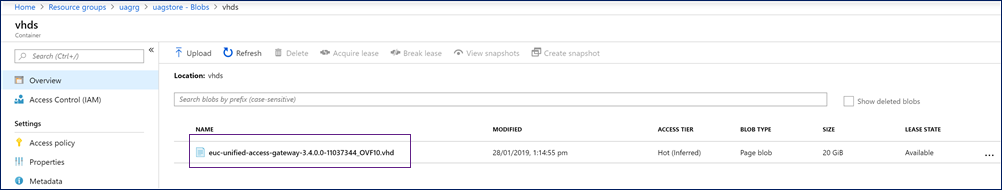

The uploaded .vhd image is listed in the vhds container.
